前往 查色頁面~~~~~~

Color iMatch

用於為塗料、塑料或紡織品配色的一款智能解決方案，該軟件包可以迅速、準確地進行色彩分析，並會從成本和色彩準確度方面考慮，對每一種配方進行優化處理。有四個用於具體配方要求的級別可供選擇。

高端解決方案包含行業最完整的色彩匹配和質量控制功能集，Color iMatch 專業版是用於為塗料、塑料或紡織品配色的一款智能解決方案。該軟件包可以迅速、準確地進行色彩分析，並會從成本和色彩準確度方面考慮，對每一種配方進行優化處理。

色彩空間
CIE L*a*b*、CIE L*C*h*、Hunter Lab、CIE (XYZxy)

視角
2 度、10 度

光源
D50、 D55、 D65、 D75、F2、F7、 F11、 C、 A、 日出日落光 (GretagMacbeth)、 TL84、 Ultralume 3000

色差
FMCII、CIE DL*、Da*、Db*、CIE DL*、DC*、DH*、Hunter DL、Da、Db

合格/不合格
具有 CIELab、CIELch 或 HunterLab、CMC (l:c)、CIE2000 (l:c:h) 的全部性能

工業標準參數
白度 [ASTM E313、 CIE、 GANZ、 Berger、 Stensby、 Taube、 Tappi] 黃度 [ASTM E313、 D1925]，遮蓋度[對比度比率、 Tappi] 力度 [安全工作負荷、 總計、 加權總計]， 模糊、孟塞爾符號、橙汁、 光滑[ASTM E429, Gloss60] Grey Scale [ISO 105 沾色、色彩改變] 同色異譜、色彩恆常性指數、 APHA

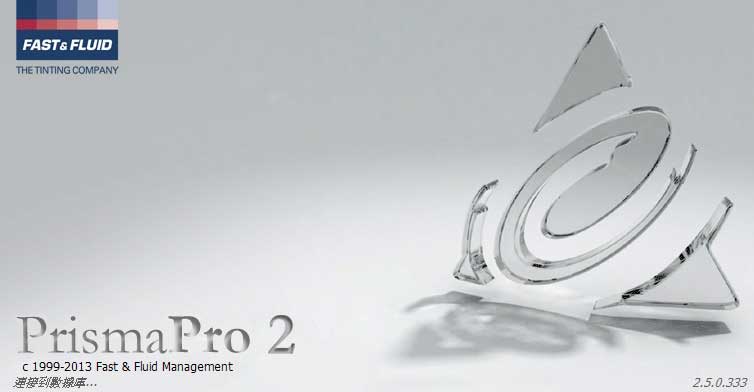

PrismaPro

PP2 Dispense

The Fast & Fluid intuitive software solution

Prisma Pro has been meeting our customers'''' point of sale tinting requirements for over 10 years.

Prisma Pro offers you:

  • Intuitive user interfaces for your operators
  • Support for several color measuring devices
  • Tools to maintain system integrity
  • Cost effective formulation management
  • The possibility to collect management information

PrismaPro for a particular colorant system and dispenser combination can be configured for free direct from our website. Our customers can do this themselves, and thus significantly lower their costs. The configuration options within PrismaPro allow you to tailor our product to your business requirements.

Customer specific solutions
Our software team delivers many customer-specific solutions. After all, no two customers share the same PrismaPro setup and not all our customers have the option of migrating to our software.

Please don’t hesitate to contact us for a quote, so we can help you to increase your market share in accordance with your specific vision and strategy.

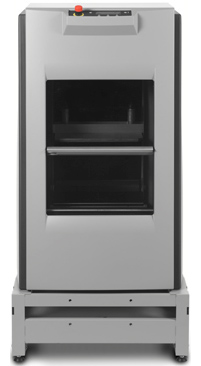

SK550 1.1

The heavy-duty paint shaker SK550 1.1 incorporates high-quality components. Its graphic display and easily accessible integrated USB connection make this machine very operator and service friendly.

Specifications
  • High/low clamping detection
  • Entry support roller
  • Variable speed (slow start)
  • Graphical display
  • 4 standard preset times
  • Customization and bidirectional shaking optional
  • A-brand components
  • Service control via diagnostic software
  • up to 40 kg; can height 6-45 cm
  • HWD 116X72X61 cm

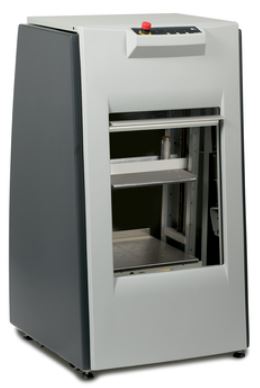

SK300

The SK300 is the entry model in the shaker range of Fast & Fluid. With its capacity of 35 kg it is suitable for all points of sales with a low to medium volume paint turnover. The manual internal sliding door assures the limited use of valuable floor space and the 3 preset timers guarantee an easy operation.

Specifications
  • Lowest loading height
  • Entry roller
  • Internal sliding door
  • Intuitive 3 button operation
  • 3 pre set mixing times
  • Automatic clamping
  • HWD 116X72X61 cm

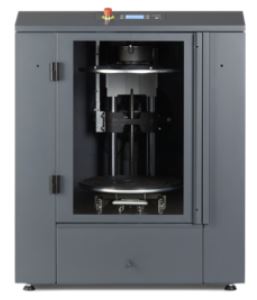

GA480

The GA480 is a very fast, high performance automatic mixer which makes the life of the user easy with its auto button selecting the optimal mixing speed and time. This auto button in combination with the improved clamping speed and dynamic balance offers a very reliable mixer.

Specifications
  • Fully automatic clamping
  • Intelligent mixing
  • Graphical display
  • Dedicated control on clamp unit
  • Dynamic balance
  • Service control via diagnostic software
  • Fully extractable can table
  • Multiple speeds up to 230 rpm
  • Continuous rpm and time regulation
  • Built-in loading ramp
  • 38 cm bottom plate diameter
  • Up to 40 kg; can height 8-40 cm
  • HWD 101x82x81 (79) cm


H-5 Series Mixer
Mixing Motion:

Vortex
Load Capacity: Up to 80lbs.
Container
Size(s):

5-gallon; 1-gallon (with included adapter)
Mix Cycle Time: Digital Timer- three-button, programmable from 1-5 minutes (Factory default 1.5, 2, and 3 minutes)
Size:

24.5"W x 32.5"D x 40.5"H
Weight:

290 lbs.
Power: 120v 60Hz or 220v 50Hz or 60Hz
Compliance: UL, FCC, CSA
Warranty:

2 years parts, 1 year labor
Options: Mechanical Timer
Accessories: Container Adapters
Conveyors
90 Degree Conveyor Curve
Surge Protector
Can/Lid Sealer

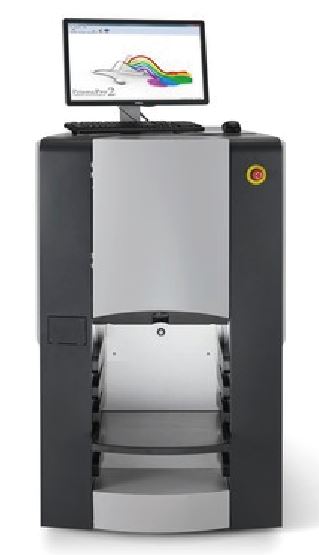

X-PROTINT

The X-PROTINT ® has been developed with the Asian market in mind; ready to accompany you to the level of growth you aspire. Expect dramatic increase in speed, Fast & Fluid reliability, clever operator and serviceability solutions with future-proof technology; ready for the future with VOC-free colorants.

Specifications
  • 6 canisters (12*2.3 l + 4*4.6 l)
  • Piston pump technology
  • Flow rate 0.5 l/min
  • Bi-directional turntable
  • Airtight nozzle closure & tubeless design
  • No calibration needed
  • Elegant & robust
  • Front refilling
  • Easy can shelf
  • Universal and water based colorants
  • Solvent optional
  • HWD 123x82x87cm

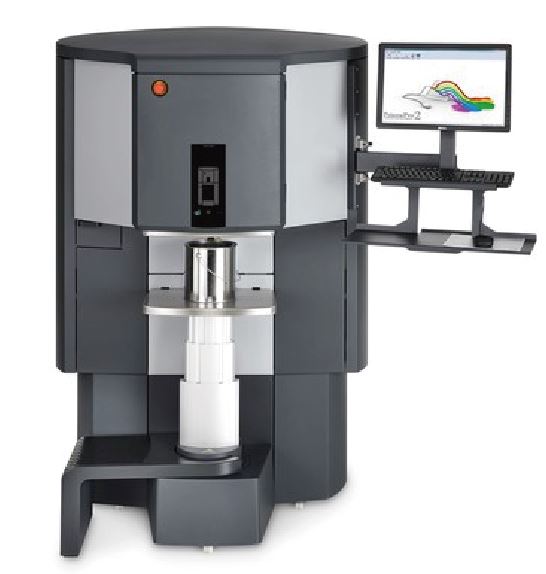

HA680

The HA680 is the ideal fit for high turnover locations. The large capacity and improved dispense speed ensure an optimal work flow. Together with the ZeroPurge™piston pump and Auto Drive™ technology, a future-proof and reliable business operation is guaranteed.
Specifications
  • Sequential dispensing
  • ZeroPurge Piston pump technology
  • 16-36 POM/SST canisters in 3/6/10/20 l size
  • Universal, solvent and water based colorants
  • Pump sizes: 100 ml / 300 ml
  • Flow rate: 0.8 - 1.0 l/min (100 ml), 1.5 - 2.0 l/min (300 ml)
  • Smallest dispense: 0.05 ml (100 ml), 0.10 ml (300 ml)
  • Operator display
  • Electric can table
  • Brush monitor
  • Electric punch (optional)
  • Heating set (optional)
  • Low/high model
  • HWD 151x115x125 cm (low model)
    HWD 171x115x125 cm (high model)

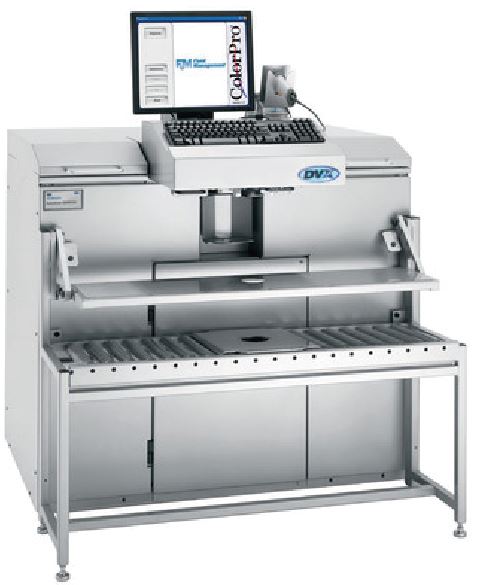

AT 8000

The Accutinter 8000 Elite is for high-volume paint departments that need the fastest, most reliable, and highest capacity tinting solution. The Accutinter 8000 Elite boasts aggressive performance that is unmatched in the industry and a gargantuan colorant capacity. With a maximum flow rate of 150 oz/min, you will never be stuck waiting on a large contractor job.
Benefits
  • Industry-leading calibration consistency due to no-wear stainless steel pumps
  • Dispenses 5 colors at a time for maximum productivity
  • Unparalleled accuracy due to DVX® pump technology
  • Robust conveyor front ideal for 5-gallon orders
  • Customizable to your needs: conveyor styles or canisters

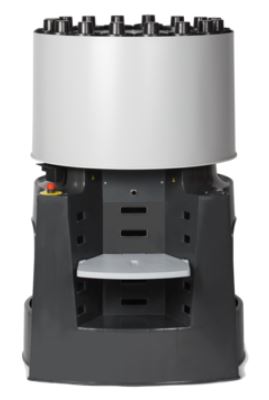

X-SMART

The X-SMART automatic paint dispenser enables you to expand the automatic tinting market and explore new channels from smaller retail locations to larger painters. The compact packaging minimizes transport costs and the machine can be assembled in a matter of minutes. The innovative modular design makes the X-SMART easy and cheap to maintain.
Benefits
  • Piston pump technology
  • 16 PP canisters in 2,25 l size
  • Universal and water based colorants
  • Flow rate up to 0,25 l/min
  • 0,077 ml smallest dispense
  • Tubeless design
  • Active nozzle closure
  • HWD 120x83x83
